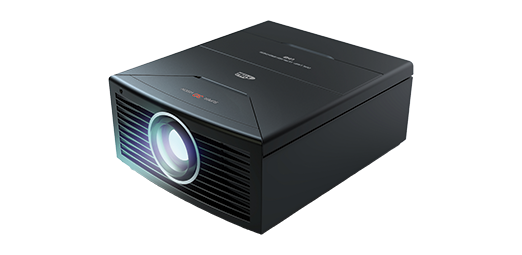

SIRIO

LIGHT ENGINE

Technology:: single-chip DMD Resolution:: Full-HD - 1920 x 1080 pixels Light source:: 2 x 350W UHP lamp Special features::3D features(*) and SIM2’s PureAction 2D/3D and PureMovie 2D technologies ::DynamicBlack™ Technology enchanced solution ::BrilliantColor™ Technology Contrast ratio (Full ON/ Full OFF):: >8,000:1 Brightness(1)::up to 7,000 Ansi Lumens

INSTALLATION

Lens options (throw ratio):: 0.77 : 1 (type M0 ) :: 1.21 – 1.45 : 1 (type M1) :: 1.45 – 1.93 : 1 (type M2) :: 1.93 – 3.67 : 1 (type M3) :: 3.67 – 6.97 : 1 (type M4) Optical shift:: Motorized with memory, Vertical up to +60%, down -20% max. from screen center (based on image height), horizontal +/-10% Digital Keystone:: Vertical Picture size (inches diagonal):: 50-300 Aspect ratio:: 4:3, 16:9, Anamorphic, Letterbox, Panoramic, pixel-to-pixel, subtitle + 3 custom-user adjustments

ELECTRONICS

Horizontal & Vertical scan freq.:: 15-80 kHz/48-120 Hz Color System:: PAL (B,G,H,I,M,N,60); SECAM; NTSC 3.58; NTSC 4.43; PC graphic standards and HDTV:: VGA, SVGA, XGA, SXGA, UXGA, WUXGA SDTV:: 480i/p, 576i/p HDTV:: 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p

INPUTS/OUTPUTS

Digital:: 2x HDMI (v.1.4 with Deep Color) Analog::1x Composite Video (RCA) ::1x Graphic RGBHV (D-sub HD15 pins) Control::1x RS-232 (D-sub 9 pins) ::1x USB (A type) socket for USB to Wi-Fi adapter ::1x LAN (RJ45 ethernet port) Miscellaneous::3D Sync Out ::3x 12V 100mA output

GENERAL SPECIFICATIONS

Software control::upgradable via RS-232 serial interface, USB or LAN Power supply:: 100-240 VAC +/-10% (48/62 Hz) Power consumption:: 1100W Projector weight:: 28 kg. / 62 lbs Projector dimensions (WxHxD):: 464 x 241 x 564 mm (18.3”x9.5”x22.2”)

ACCESSORIES

Supplied::Installation and User Manual ::AC power cords (2m - 6.6 ft) ::Backlit remote control and batteries ::Live Colors Calibration software 2.0 ::USB Wi-Fi adapter ::RS-232 Adapter cable Optional::SIM2 VISUS Active Glasses(**) ::IR Emitter ::Projector ceiling bracket ::Anamorphic lens systems (fixed or motorized) (1)ANSI Lumen Specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer’s projectors. Measurements are taken in a totally dark test room with T3 type lens (wide angle zoom settings), brand new lamp at full power, lamp’s native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification. (**) A SIM2 3D emitter and glasses pack is required to initiate 3D feature (sold separately). The DLP® logo and DLP® medallion are trademarks of Texas Instruments. product specifications are subject to change without notice. Due to constant product development, specifications and design might be subject to change without notice.
