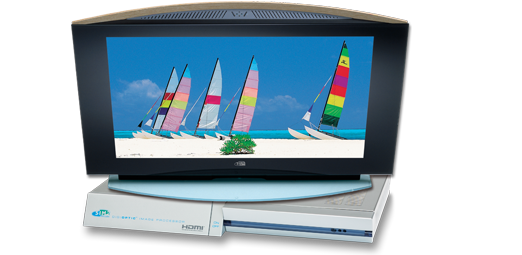

HTL40 LINK

Display

LCD PANEL:: latest generation TFT LCD Resolution:: Wide XGA (1366x768 x3) 3.147.264 pixels for HD Images Picture Format:: true 16:9 Screen Size:: 40" Brightness:: 600 cd/m² Contrast ratio:: 1000:1 Viewing Angle:: 170° Lamp life time*:: 60.000 hrs in standard lighting conditions and brightness Response Time:: Typically 8ms

Electronics

Horiz. scan freq.:: 15-80KHz Vert. Scan freq.:: 48 - 85Hz Aspect ratio:: 16:9 Anamorphic, LetterBox, panoramic, pixel to pixel + 3 custom-user adjustments Video Signals Compatibility:: PAL (B, G, H, I, M, N, 60); SECAM; NTSC 3,58; NTSC 4,43 automatically selected HDTV:: ATSC (480p, 720p, 1080i); 576p + 1080i 50Hz; PC graphic standard: VGA, SVGA, XGA, SXGA, UXGA (1600X1200 60 Hz) DCDi™ by Faroudja:: FLI2310 Color Temperature: 3 preset color temperature selectable by OSD Special adjustments:: noise reduction, fleshtone regulation, overscan Intelligent picture memory functions:: 75 total - 3 for each input.

Inputs/Outputs

Analog::(on DigiOptic™ Image Processor) ::2 x Composite Video (RCA) ::2x S-Video (mini Din 4 pin) ::3 x RGBHV/YCrCb (5x RCA) ::1 x RGBHV/YCrCb (5x BNC) ::2 x RGBHV (D-Sub 15 pin) Digital::1 x DVI (DVI-D) ::1 x HDMITM - HDCP Miscellaneous::1 x OUT Digital Audio (Toslink) ::1 x RS232 (D-Sub 9 pin)

General Specifications

Power Consuption:: 330 W Mains Voltage Range:: 90 - 240V AC Weight:: 45 Kg net (99 lbs) Dimensions (WxHxD) without tabletop support:: (stand) 43.54”x25.67”x4” (1106x652x102 mm) Dimensions (WxHxD) with tabletop support:: (stand) 43.54”x27.63”x9.05” (1106x702x230 mm)

Accessories

Supplied::Installation and User Manual ::AC Power cords (EU,UK,an d USA) 6.6 ft (2m) ::Backlit remote control and batteries ::DigiOptic™ Image Processor ::Fiber optics cable - 65,6 ft (20 m) Optional::Accessories ::Matt Silver tabletop support ::HT fiber optics cable 131,2 ft (40 m)

Cabinet Colors/Materials

Rosewood Black:: Rosewood rear panel and Matt Silver tabletop support Whitened Oak:: Whitened Oak rear panel and Matt Silver tabletop support
(*) Lamp life: the hours quoted have been calculated in a lab under strict test conditions. Lamp life varies depending on usage conditions and the surrounding environment. The calculated lamp life cannot be guaranteed and is not protected by warranty

Due to constant product development, specifications and design might be subject to change without notice.
