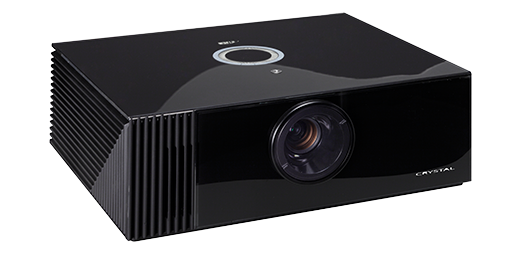

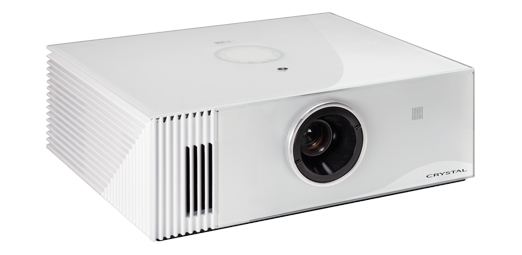

CRYSTAL 35

Stand out from the crowd

Stand out from the crowd

Light Engine

Technology:: 1 chip DMD 1080p Resolution:: 1920 x 1080 pixel HDVT resolution Max. Resolution support:: up to WUXGA Special technologies::BrilliantColor™ ::DynamicBlack™ ::SIM2 Advanced Lamp Technology Video Processing:: SIM2 Cinema Video Processing Contrast Ratio:: up to 30.000:1 (DB) Lamp:: UHP280W Lamp Life(1):: 2000/3000 hours (Normal/Eco Mode) ANSI Brightness (typ.)(2):: up to 2.500 Lumens

ELECTRONICS

Horiz. & Vert. scan freq.:: 31-92 KHz, 48-85 Hz. Color system:: PAL (B,G,H,I,M,N,60); SECAM; NTSC 3.58; NTSC 4.43 PC graphic standards:: VGA, SVGA, XGA,SXGA, UXGA, WUXGA SDTV:: 480i/p, 576i/p HDTV:: 720p 50/60, 1080i 24/35/50/60, 1080p 24/35/50/60 Color space selection:: HDTV (Rec 709) Color temperature:: Native, Low, Medium, High, User adjustment

INSTALLATION

Throw Ratio:: 1.62-2.43:1 Screen Size:: 28" - 200" Lens Shift:: Vertical (Manual) Aspect Ratio:: 16:9 (4 aspect ratio selectable)

INPUTS/OUTPUTS

Digital::2 x HDMI 1.3 Analog::1 x Composite Video (RCA) ::1 x S-video (Mini DIN 4 pin) ::1 x Graphic RGBHV (D-sub 15 pin) shared with Component ::1 x Component (RCA) Control::1 x RS232 ::1 x USB (mini B type) - for service only Miscellaneous::1 x 12v output

GENERAL SPECIFICATIONS

Power Consumption::Typical 430W ::Standby < 1W IR sensor::Front & Rear Weight:: approx. 12 kg (26,5 lbs) Dimensions (LxWxH)::364x450x167 mm (14.3”x17.7”x6.6”)

ACCESSORIES

Supplied::2 x Remote controls ::AC Power Cords (USx1.8m, EUx2.5m,UKx2.5m) ::1 x RS232 Cable (female-female) ::User’s Manual CD (EN, FR, IT DE, ES, PT, NED, CN, RU) ::Universal Quick Start Guide (EN, FR, IT, DE, ES, PT, NED, CN, RU)
(1) Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty.
(2) ANSI Lumen Specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer’s projectors. Measurements are taken in a totally dark test room, wide angle zoom settings, brand new lamp at full power, lamp’s native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification.
