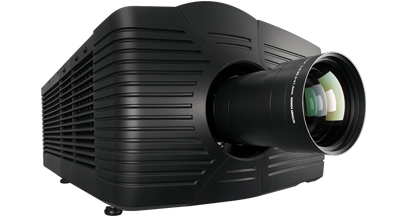

4K Power
DISPLAY
Display technology type:: 3-chip 1.38” DMD™
Native resolution:: 4K (4096 x 2160)
Contrast:: 2000:1 (full on/off)
Brightness:: up to 10,000 ANSI (10,000 center) lumens – 2.0 kW lamp CDXL-20
Lamp type:: Xenon bubble (*)
Estimated life:: 2.0kW lamp, 3500 hrs (**) LEN SES
Lens mount type:: Tool-free lens insertion system - Adjustable lens mounting
Lens mount motorized:: Horizontal and vertical offset - Focus - Zoom
Lenses fixed:: 0.72:1(1) - 1.0:1 (2)
Lenses zoom:: 1.13-1.31:1 (3)
::1.31-1.63:1
::1.63-2.17:1
::1.98-2.71:1
::2.71-3.89:1
::3.89-5.43:1
::5.0-7.69:1(3)
Lenses offsets:: ±13% Vertical ±4% Horizontal - all
lenses INPUTS
Signals standard:: 2 x 3G HD-SDI on board
::2 x HDMI 1.3 on board (physical DVI-I connectors)
Signals 2D (2K and 1080p: scaled up to 4K):: 4K - 24/25/30Hz 4:2:2 10-bit (4 x 1.5G HD-SDI)
::4K - 24/25Hz 4:4:4 12-bit (4 x 3G-SDI)
::4K - 30Hz 4:4:4 12-bit (4 x 3G HD-SDI)2
::4K (3840 x 2160) - 24/25/30Hz 4:4:4 12-bit (4x 3G-SDI)
::4K (3840 x 2160) - 24/25/30Hz 4:2:2 10-bit (4x1.5G HD-SDI)
::2K - 60Hz 4:4:4 8-/10-/12-bit (HDMI)
:: 2K - 30Hz 4:2:2 10-bit (1.5G HD-SDI)
::2K - 30Hz 4:4:4 12-bit (3G HD-SDI)
::1080p - 50/60Hz 4:2:2 10 bit (3G-SDI)
::1080p - 60Hz 4:4:4 8/10/12-bit (HDMI)
Signals 3D –triple flash - scaled up to 4K:: 2K - 24Hz 4:4:4 12-bit (2 parallel 3G HD-SDI)
::2K - 24Hz 4:2:2 10-bit (2 parallel 1.5G HD-SDI)
::1080p - 24Hz 4:4:4 8-/10-/12-bit (2 parallel DVI-D)
Signals 3D – double flash - scaled up to 4K:: 2K - 24Hz 4:4:4 12-bit (2 parallel 3G HD-SDI)
::2K - 24Hz 4:2:2 10-bit (2 parallel 1.5G HD-SDI)
::2K - 30Hz 4:4:4 12-bit (2 parallel 3G HD-SDI)
::2K - 30Hz 4:2:2 10-bit (2 parallel 1.5G HD-SDI)
::1080p - 24/25/30Hz 4:4:4 8/10/12-bit (2 parallel DVI-D)
Inputs/control and networking:: RS-232, Ethernet (10/100) RJ45, Detachable LCD control module GENERAL AND ACCESSORIES
Operating voltage:: Single phase 200-240 VAC @ 50/60Hz
Operating current:: 23A max @ 200V
Dimensions (LxWxH):: 51.1 x 25.5 x 19.0” (1299 x 648 x 480mm) with lens cover
Weight:: 251 lbs (114 kg)
Operating temperature:: 50-95°F (10-35°C)
Humidity (non-condensing):: 20-80%
Accessories standard:: Detachable LCD control module - AC line cord for projector head - Heat extraction fan kit (required when operating projector)
Accessories optional:: Lamp kit - Rack mount pedestal - Replacement air filter for light engine - Replacement air filter for liquid cooling radiator REGULATORY APPROVALS
Directives:: (EC) 2002/95/EC (RoHS) - 2002/96/EC (WEEE)
Regulations:: (EC) No. 1907/2006 (REACH) - CAN/CSA C22.2 No. 60950-1 - UL 60950-1 - IEC 60950-1 - FCC, Part 15, Subpart B, Class A - EN55022/CISPR22 Class A - EN55024/CISPR24 CERTIFICATIONS
Certifications marks:: cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand), South Africa (*) User replaceable bulb.
(1) No offset;
(2) 1.0:1 fixed lens ±29% Vertical ±9% Horizontal;
(3) 1.13-1.31:1 and 5.0-7.69:1 zoom lenses ±56% Vertical ±19% Horizontal (**) ANSI Lumens specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer’s projectors. Measurements are taken in a totally dark test room with brand new lamp at full power, lamp’s native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification. Due to constant product development, specifications are subject to change without notice.
