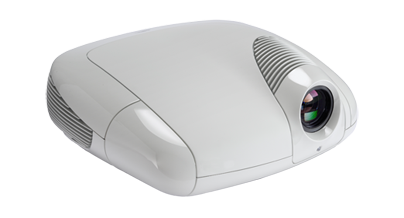

AR

DISPLAY

DLP® Type:: 3 Chip DMDs 0,95” 1080p DC4 Resolution:: 1920x1080 pixels Color Gamut::DCI-P3 ::REC 709 Lens:: High quality selected optic glass lenses Special features:: PureAction 3D technology ::Triple flash genuine 144hz cinema reproduction ::PureAction 2D for fast action materials ::Puremovie 2D ::SIM2 DynamicBlack™ Technology enchanced solution (in 2D mode only) ::PROSIM2 electronic platform ::DEJUDDER feature ::High speed VARIABLE IRIS ::Autocalibration probe Contrast ratio (Full ON/ Full OFF):: up to30,000:1 with DynamicBlack™ Technology and EC lens type (in 2D mode only) Lamp power:: 350W (dimmable) Brightness^(**):: up to 5500 Ansi Lumens (adjustable) Lamp life expectancy^(*) :: 2000 hours typical in standard power mode; 3000 hours in ECO mode

INSTALLATION

Throw ratio standard lens:: 1.82-2.48:1 (type T2) Throw ratio optional lenses:: 1.37-1.66:1 (typ. T1) ::2.6-3.9:1 (typ. T3) Optical shift::Motorized, vertical up to +50%, down -10% max. from screen center (based on image height) Digital keystone adjustment:: Vertical, +/-18˚ Picture size (inches diagonal):: 50-300 Aspect ratio:: 4:3, 16:9 Anamorphic, LetterBox, Panoramic, Pixel to Pixel + 3 custom-user adjustments

ELECTRONICS AND CONNECTIVITY

Horizontal & vertical scan freq.:: 15-80kHz/48-144Hz SDTV:: PAL (B,G,H,I,M,N,60); SECAM; NTSC autom. selected HDTV:: 480p, 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p PC graphic standard:: VGA, SVGA, XGA, SXGA, UXGA, WUXGA 10 bit Full Channel Signal Board Video Processing Calibration:: automatic calibration with custom probe

INPUTS/OUTPUTS

Digital:: 2 x HDMI-HDCP vers. 1.4a (v.1.4 with Deep Color) Analog::1x Composite Video ::1 x Graphic RGBVH (VGA-UXGA) (D-sub 15 pin) ::1 x Component - Analog YPbPr/RGBs/RGBHV (RCA) Control::1 x LAN (RJ45) :: 3D Sync out ::1 x RS232 (D-sub 9 pin) ::1 x USB (B type) Miscellaneous::3 x 12V 100mA output (via Jack)

GENERAL SPECIFICATIONS

Software control:: upgradable via RS232, serial interface or USB and online via LAN Mains voltage range:: 100-240V +/-10% (48/62 Hz) Projector Weight:: 12 Kg. or 26 lbs Projector dimensions (WxHxD):: 459x210x455 mm (18”x8.3”x17.9”) Colour::High gloss and Matte White

ACCESSORIES

Supplied::Installation and User Manual ::AC power cords (2m - 6.6 ft) ::Backlit remote control and batteries ::Live Colors Calibration software 2.0 ::Premium SIM2 VISUS rf Active Glasses (4 pcs.) - USB rechargeable ::RF Emitter ::Autocal Calibration Probe Optional::Projector ceiling bracket ::Anamorphic lens systems (fixed or motorized) ::Additional VISUS active glasses (*) Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty. (**)ANSI Lumen Specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer’s projectors. Measurements are taken in a totally dark test room with T3 type lens (wide angle zoom settings), brand new lamp at full power, lamp’s native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification. Due to constant product development, specifications are subject to change without notice.
